| General |

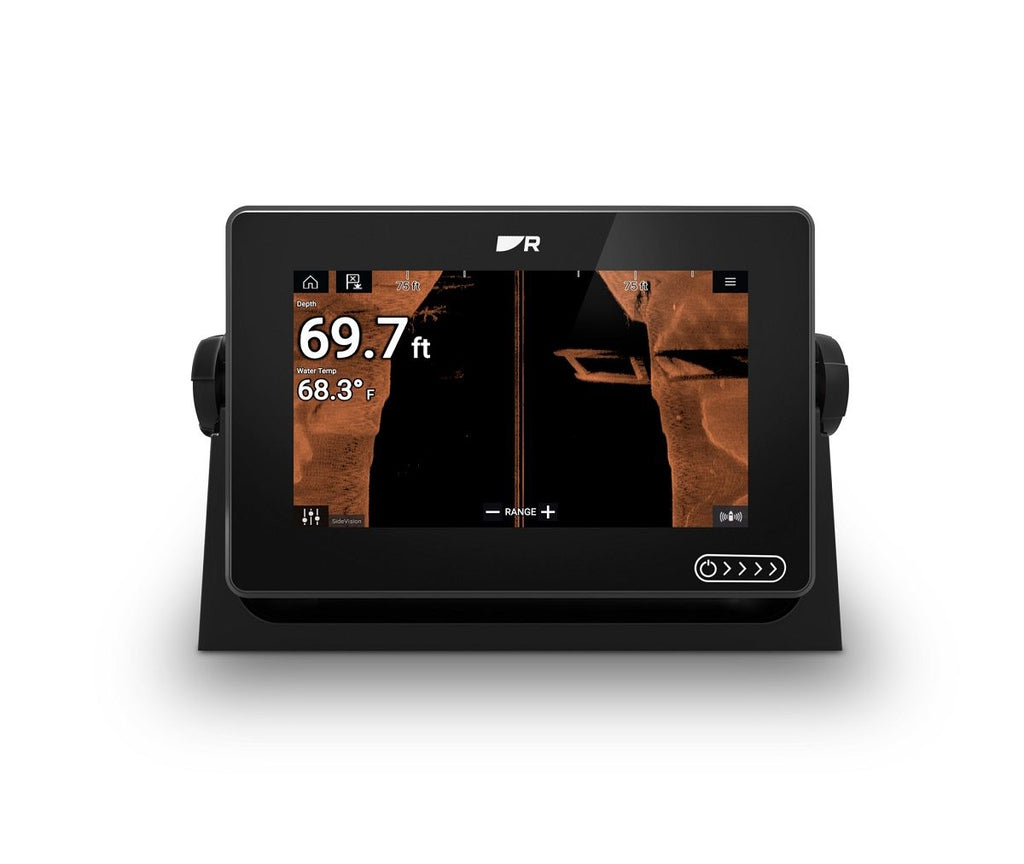

| Display Size |
7.0 inch High Density IPS |
| Display Resolution |
1024 x 600 (WSVGA) |
| Display Type |
Multitouch with HydroTough™ rugged hydrophobic coating |
| Brightness |
1,500 nits |
| Viewing Angle |
85° Top, Bottom, Left, Right |
| Dimensions W x H x D (Excluding trunnion and cables) |
7.92 x 5.24 x 3.0in |
| Mounting Options |
Surface, Flush, Trunnion, (Front installation bracket available) |
| Waterproof Rating |
IPX6 / IPX7 |
| Operating Temperature Range |
-25°C to +55°C (-13°F to +131°F) |
| Storage Temperature Range |
-30°C to +70°C (-22°F to +158°F) |
| Power |
| Voltage |
12V DC (8V to 16V DC) |
| Power Consumption (Full brightness) |
7.34 Watts. RV Sonar version 9.84 Watts |
| Sensors |
| GNSS / GPS |
Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required |
| Sonar Type (Built-in) |
RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D |
| Sonar Connections |
25pin RealVision™ type connector |
| Sonar Depth |
High CHIRP Sonar = 900 feet (274m)
DownVision™ = 600 feet (183m)
SideVision™ = 300 feet (91m)
RealVision™ 3D = 300 feet (91m) |
| External Sonar Option |
Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet |
| Radar |
Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars |
| AIS |
Yes - NMEA2000 compatible |
| Autopilot Control |
Yes - Evolution Autopilot |
| Thermal Night Vision |
Yes FLIR AX8, M232, M300 Series, M400, M500 |
| Video / Camera |
Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras) |
| Weather |
GRIB View - Free GRIB viewer and Theyr Ltd Subscription
SiriusXM - N. America Only |
| Audio |
NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio |
| Digital Switching |
Yes - Empirbus & C-Zone compatible |
| Remote Control |
Yes Optional RMK-10 (A80438) |
| Networking |
| Ethernet |
1 x 10/100 Mbit/s Network (RayNet) |
| NMEA0183 |
No |
| NMEA2000 |
NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter |
| SeaTalkNG |
Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box) |
| USB |
1 x USB microAB |
| Wi-Fi |
WiFi - 802.11 a/b/g/n |
| BlueTooth |
Bluetooth v4.0 |
| Navigation |
| Cartography |
Lighthouse Charts, Navionics, and C-MAP compatible |
| Waypoint/Routes/Tracks (Wpts/Rts/Trk) |
10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts |
| Memory |
| Internal Memory |
16 GB Solid State |
| External Memory |
1x MicroSD Card Slot |
| Languages |
24 |
| Conformances |
NMEA 2000 certification
Europe: 1999/5/EC
Australia and New Zealand: C-Tick, Compliance Level 2
FCC 47CFR part 15
Industry Canada RSS210 |
